Hydraulic Jacks
The Hydraulic Jacks offered by PULSE ENGINEERING are designed for heavy-duty lifting, positioning, and maintenance tasks across various industries, including construction, steel, cement, aviation, and power plants.
Key Features
High-Grade Materials: Manufactured using premium raw materials for enhanced durability.
Robust Design: Engineered to withstand demanding applications.
Low Maintenance: Designed for ease of maintenance and longevity.
Versatile Operation: Available in both remote-operated and integral configurations.
High-Temperature Compatibility: Suitable for applications up to 150°C upon request
Technical Specifications
• Load Capacity: From 1 tonne to 1000 tonnes.
• Stroke Length: Standard up to 150 mm; extended strokes available upon request.
• Operating Pressure: 550 kg/cm² and 700 kg/cm² series; special pressure ranges available on request.
• Cylinder Types: Single Acting, Double Acting, and Multi-Stage Jacks.
Detailed Product Types
1) Screwed Ram Hydraulic Jacks
• Load Capacity: 10 to 1000 tonnes.
• Design Features: Robust construction with safety lock nut and mounting holes.
• Applications: Ideal for lifting and holding loads at elevated heights.
2) Plain Ram Hydraulic Jacks
• Load Capacity: 5 to 1000 tonnes.
• Design Features: Plain ram design with spring return or load return options.
• Applications: Suitable for load applications, bending, and compacting purposes
3) Low Height Hydraulic Jacks
• Load Capacity: 5 to 200 tonnes.
• Design Features: Compact design with hardened chrome-plated body.
• Applications: Used in confined spaces for jacking and pressing operations.

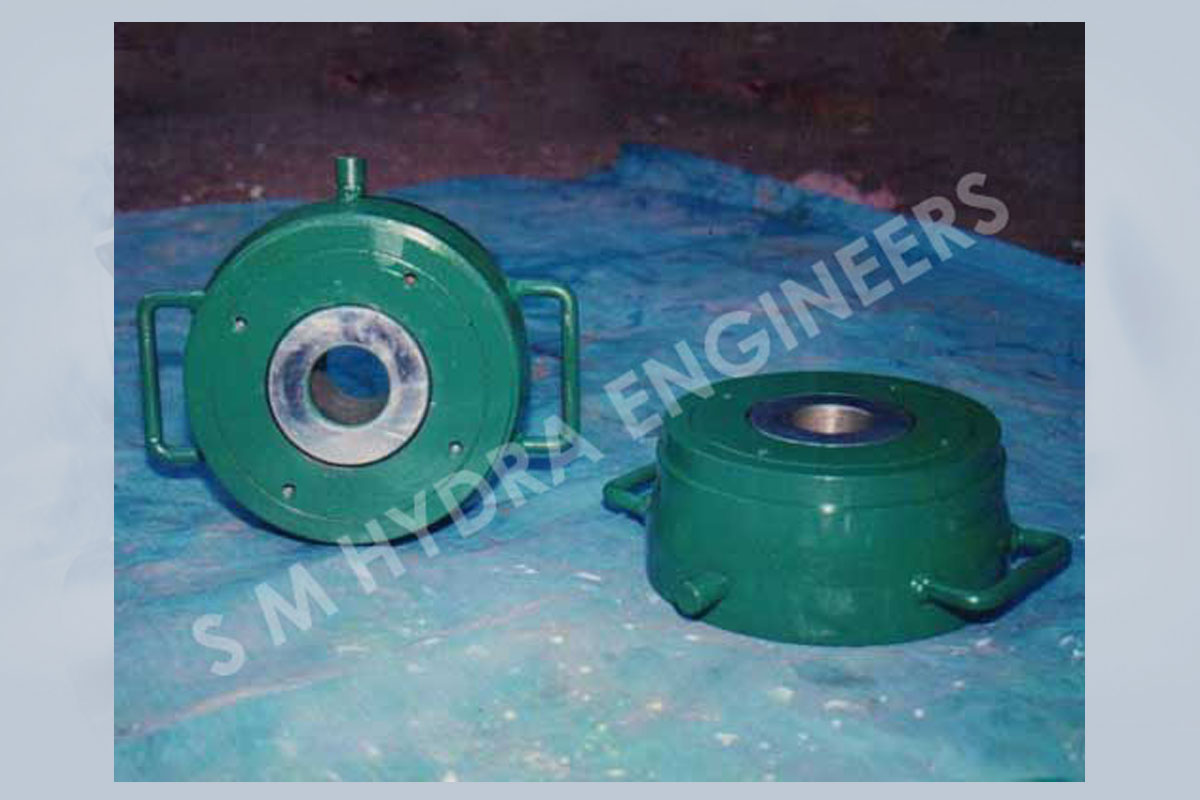

4) Hollow Ram Hydraulic Jacks
• Load Capacity: 5 to 100 tonnes.
• Design Features: Plain ram type with single or double acting options.
• Applications: Ideal for tube pulling, tensioning, and removing bearing bushes.
5) Multi-Stage Hydraulic Jacks
• Design Features: Telescopic rams with up to 4 stages.
• Applications: Used for lifting and positioning purposes requiring extended stroke lengths
